The 700R4 transmission is a popular choice among automotive enthusiasts, particularly in retrofit scenarios for classic vehicles. Its versatility and reliability make it a go-to option for many builds. However, to achieve optimal performance, proper adjustments are crucial. Central to this is the throttle valve cable adjustment, a task that might seem daunting at first but is essential for the smooth operation of your vehicle. This guide will delve into the nuances of the throttle valve cable adjustment, ensuring you have all the necessary information to undertake this task with confidence.
Firstly, understanding the role of the throttle valve cable is paramount. This cable connects the throttle body to the transmission and plays a vital role in modulating shift timing and firmness. A well-adjusted throttle valve cable ensures that the transmission shifts at appropriate RPMs, which not only enhances power delivery but also prolongs the life of the transmission. A misadjusted cable can lead to sluggish shifts, excessive slipping, and in severe cases, catastrophic transmission failure.
Before diving into the adjustment process, it’s beneficial to gather the necessary tools. You will require a reliable socket set, an adjustable wrench, and possibly a flat screwdriver. Additionally, having safety goggles and gloves on hand is always wise, as this procedure involves working in proximity to engine components heated during operation.
The first step in the adjustment process involves unpacking the throttle valve cable mechanism. Locate it on the side of the transmission; it typically runs from the throttle body to the transmission housing. Carefully inspect the cable for signs of wear or damage. If you observe fraying or kinks, it may be time for a replacement rather than an adjustment.
Once you’ve confirmed the cable’s integrity, you can begin the adjustment process. Start by ensuring that the vehicle is safely secured, preferably on a flat, stable surface. Shift the transmission into park or neutral—this step is crucial for ensuring safety during adjustments. Start the engine and allow it to reach operating temperature. Warm fluid achieves better accuracy when adjusting the cable.
Now, observing the position of the throttle at idle is key. Your aim here is to ensure that the throttle valve cable has a slight amount of tension without being excessively tight. To achieve this, gently pull on the throttle lever at the carburetor or throttle body and observe the action at the transmission end. You should see a movement without undue resistance, indicating that things are in order.

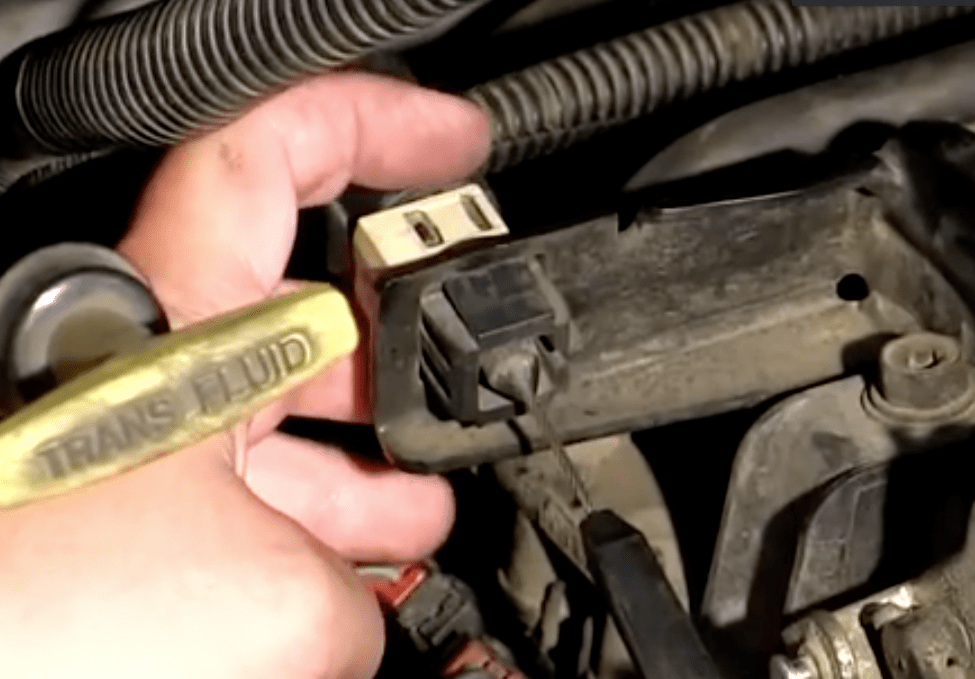

If adjustment is required, locate the throttle valve cable adjustment clip. Depending on the specific model and year, this might be a simple clip or a more intricate mechanism. Release the clip gently; you should be able to slide it along the length of the cable. Pulling the clip towards the throttle body tightens the cable, while sliding it away will slacken it.
While making these adjustments, frequently check the action of the throttle and the cable attachment at the transmission end. You may need to make several adjustments, checking each time to ensure you’ve achieved the correct tension. Remember, patience is vital throughout this process; this isn’t an instant fix. It’s about getting that perfect balance for optimal performance.
After achieving a satisfactory adjustment, fasten the adjustment clip securely to lock the cable in place. Once secured, take the vehicle for a test drive. Pay close attention to the transmission shifts. They should be crisp and occur at the appropriate RPM. If shifts feel delayed or harsh, it may indicate that further adjustment is necessary.
Be mindful of how the vehicle responds under different driving conditions. Accelerating hard should result in sharper, more immediate shifts, whereas gentle acceleration should yield smooth transitions. Conducting multiple test drives under varied conditions helps in confirming that the throttle valve cable adjustment is optimally set, allowing performance and reliability to harmonize.
It’s also wise to consider how environmental factors could affect your adjustment. Variations in temperature and altitude can impact performance, so regular checks of the throttle valve cable may be required if operating under extreme conditions or if the vehicle is frequently modified. Additionally, regular maintenance, including fluid changes and checking other transmission components, helps in ensuring longevity and efficiency of the system.
Lastly, if you encounter persistent issues even after adjustment, it might indicate deeper underlying problems within the transmission. In such cases, seeking professional assistance or consulting an experienced mechanic becomes essential. An expert can replicate your experiences and diagnose potential issues that might not be visible to a casual observer.
In conclusion, adjusting the throttle valve cable on a 700R4 transmission is an essential task for anyone aiming to optimize their vehicle’s performance. By understanding the role of this cable, gathering the right tools, and following a meticulous process, you can significantly enhance your vehicle’s driving experience. Remember, comprehensive checks, careful adjustments, and an attentive ear during test drives will guide you to a successful outcome. Your diligence not only ensures smoother shifts today but also contributes to the long-term health of your transmission, making it an investment worth making.
